SARM-S-106D, SARM-106D, Miniature PCB Automotive Relay

SANYOU RELAYS Miniature PCB Relays for advanced technology Automo tive Re lay version:V1.4 SARM-Series .

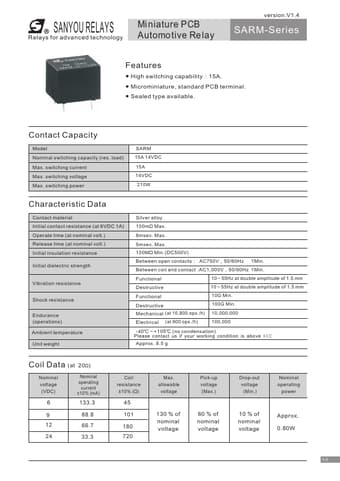

datasheet Preview Page 1 from Datasheet4u.com

SARM-106D-SANYOU.pdf

SARM-S-106D Datasheet Preview — This datasheet PDF includes multiple part numbers: SARM-S-106D, SARM-106D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SARM-S-106D, SARM-106D

Manufacturer:

SANYOU

File Size:

184.73 KB

Description:

Miniature PCB Automotive Relay

Note:

This datasheet PDF includes multiple part numbers: SARM-S-106D, SARM-106D.
Please refer to the document for exact specifications by model.

Features

* High switching capability：15A.
* Microminiature, standard PCB terminal.
* Sealed type available. Contact Capacity Model Nominal switching capacity (res. load) Max. switching current Max. switching voltage Max. switching power SARM 15A 14VDC 15A 14VDC 210W Characteristic Data Contac

Applications

* Home appliances such as air conditioner, electric heater, etc.
* Automat
* Office equipment such as computer, fax machine, etc.
* Automatic power window, car antenna, door lock, etc. Characteristic Curves Operations Time(ms) Endurance Curve 107 106 105 0 1 3 5 10 15 20
