SMI-S-224D Datasheet Miniature Power Relay

Manufacturer: SANYOU

Download the SMI-S-224D datasheet PDF. This datasheet also includes the SMI-S-103D variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SMI-S-103D-SANYOU.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SMI-S-224D
Manufacturer SANYOU
File Size 229.60 KB
Description Miniature Power Relay
Datasheet download datasheet SMI-S-224D Datasheet

Overview

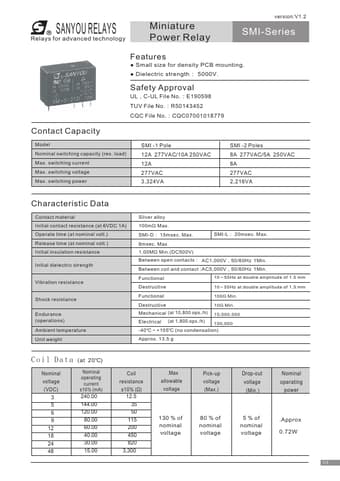

SANYOU RELAYS Relays for advanced technology Miniature Power Relay version:V1.

Key Features

  • Small size for density PCB mounting.
  • Dielectric strength： 5000V. Safety Approval UL，C-UL File No. ：E190598 TUV File No. ：R50143452 CQC File No. ：CQC07001018779 Contact Capacity Model Nominal switching capacity (res. load) Max. switching current Max. switching voltage Max. switching power SMI -1 Pole 12A 277VAC/10A 250VAC 12A 277VAC 3,324VA SMI -2 Poles 8A 277VAC/5A 250VAC 8A 277VAC 2,216VA Characteristic Data Contact material Initial contact resistance (at 6VDC 1A) Operate time (at.
