S-LT10.7MA5, CERAMIC FILTER

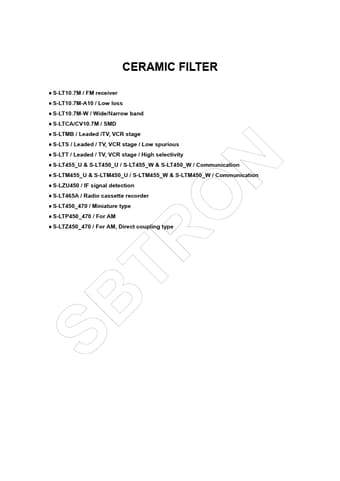

CERAMIC FILTER * S-LT10.7M / FM receiver * S-LT10.7M-A10 / Low loss * S-LT10.7M-W / Wide/Narrow band * S-LTCA/CV10.7M .

datasheet Preview Page 1 from Datasheet4u.com

S-LT10.7MA5-SBtron.pdf

S-LT10.7MA5 Datasheet Preview — Preview of S-LT10.7MA5 PDF

Datasheet Details

Part number:

S-LT10.7MA5

Manufacturer:

SBtron

File Size:

2.27 MB

Description:

CERAMIC FILTER

Applications

* FM receiver
* Home appliance
* Communications Part no. S-LT10.7MA5 S-LT10.7MS2 S-LT10.7MS3 S-LT10.7MJ 3dB Band width (KHz) 280 ± 50 230 ± 50 180 ± 40 150 ± 40 TECHANICAL CHARACTERISTICS 20dB Band width Insertion loss (KHz) (dB) max. 650 6 600 6 520 7 400 10 DIMENSIONS Spur
