SM150A1, SM110A0 Datasheet - SCHOTT

SM150A1 SEFUSE Thermal Links

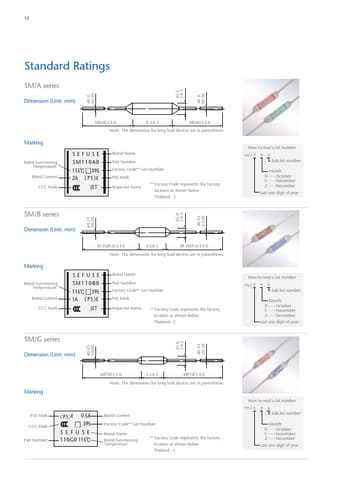

12 Standard Ratings SM/A series Dimension (Unit: mm) ø0.6 ±0.05 ø2.5 ±0.3 ø0.6 ±0.05 Marking Rated Functioning Temperature Rated Current CCC Mark 38(68)±3.0 9 ±0.3 38(68)±3.0 Note: The dimensions for long lead devices are in parentheses. SEFUSE SM110A0 115℃  395 2A 〈 PS 〉E JET Brand Name Part Number Factory Code Lot Number PSE Mark Inspector Name F actory Code represents the factory location as shown below Thailand : C ø0.53 ±0.05 ø2.0 ±0.3 ø0.53 ±0.05 SM/B s.

SM110A0-SCHOTT.pdf

This datasheet PDF includes multiple part numbers: SM150A1, SM110A0. Please refer to the document for exact specifications by model.
SM150A1 Datasheet Preview Page 2 SM150A1 Datasheet Preview Page 3

Datasheet Details

Part number:

SM150A1, SM110A0

Manufacturer:

SCHOTT

File Size:

1.39 MB

Description:

Sefuse thermal links.

Note:

This datasheet PDF includes multiple part numbers: SM150A1, SM110A0.
Please refer to the document for exact specifications by model.
