SDC141H Datasheet - SDC

Switch Hall IC

SDC141H Features

* ÿ 4V to 24 V operating voltage ÿ Built-in temperature compensation circuit ÿ Built-in power reverse protection ÿ Operating temperature: -55°C~150°C ÿ Open collector output ÿ 20mA(MAX) output sink current ÿ Operating Speed: 0~100kHz above Applications ÿ Three-phase brushless DC motor ÿ Brushless DC f

SDC141H General Description

The SDC141H is a latching switch hall IC .It’s composed of power reverse protection circuit, high stable voltage regulator, hall voltage generator, a differential amplifier, Schmitt trigger and open collector output. Change of magnetic field can be converted into digital signal. It can be used for b.

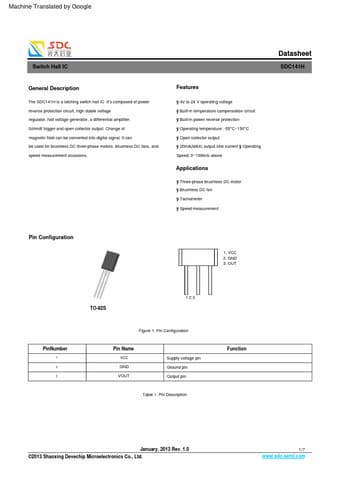

SDC141H Datasheet (535.50 KB)

SDC141H Datasheet Preview — Preview of SDC141H PDF

Datasheet Details

Part number:

SDC141H

Manufacturer:

SDC

File Size:

535.50 KB

Description:

Switch hall ic.
