Unipolar Hall-Effect Digital Switch

S3144 Features

* 4.5V to 24V Operation

* -40°C to 150°C Superior temperature operation

* Bipolar technology

* Open-collector 25 mA output

* Reverse battery protection

* Small Size SOT23 3L or SIP 3L

* Solid-state reliability

* Resistant to physical st

S3144 General Description

The S3144 is a unipolar Hall-effect sensor IC fabricated from bipolar technology. The device integrates a voltage regulator, reverse battery protection diode, Hall sensor with dynamic offset cancellation system, temperature compensation circuitry, small signal amplifier, Schmitt trigger and an open.

S3144 Datasheet (216.94 KB)

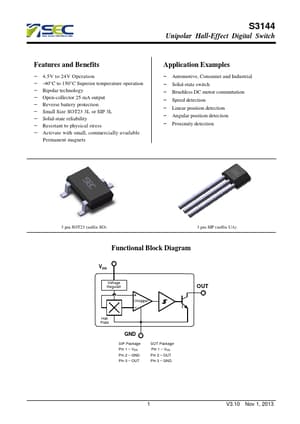

Preview of S3144 PDF

Datasheet Details

Part number:

S3144

Manufacturer:

SEC

File Size:

216.94 KB

Description:

Unipolar hall-effect digital switch.
