SS2406 - Hall Latch - High Sensitivity

SEC

📥 Download Datasheet

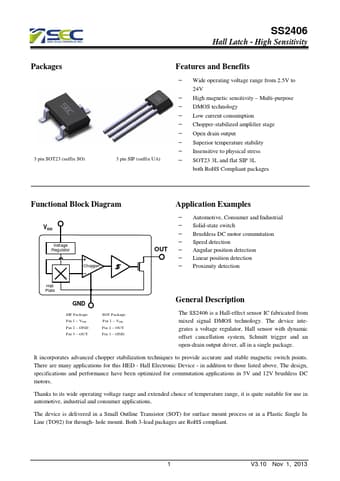

SS2406 Datasheet Preview — Preview of SS2406 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SS2406
Manufacturer: SEC
File Size: 305.94 KB
Datasheet: SS2406-SEC.pdf
Description: Hall Latch - High Sensitivity

SS2406 Product details

Description

The SS2406 is a Hall-effect sensor IC fabricated from mixed signal DMOS technology..

Features

Wide operating voltage range from 2.5V to 24V.
High magnetic sensitivity.
Multi-purpose.
DMOS technology.
Low current consumption.
Chopper-stabilized amplifier stage.
Open drain output.
Superior temperature stability.
Insensitive to physical stress.
SOT23 3L and flat SIP 3L both RoHS Compliant packages Functional Block Diagram VDD Voltage Regulator Chopper Application Examples.
Automotive, Con.
