SS3613 - CMOS Omnipolar High Sensitivity Micropower Hall Switch

Description

The SS3613 Omnipolar Hall effect sensor IC is fabricated from mixed signal CMOS technology .It incorporates advanced chopper-stabilization techniques to provide accurate and stable magnetic switch points.

Features

  • Micropower consumption for battery powered.

📥 Download Datasheet

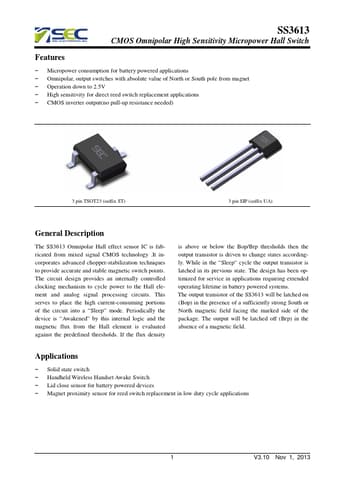

Datasheet preview – SS3613

Datasheet Details

Part number SS3613
Manufacturer SEC
File Size 191.25 KB
Description CMOS Omnipolar High Sensitivity Micropower Hall Switch
Datasheet download datasheet SS3613 Datasheet
Additional preview pages of the SS3613 datasheet.
