FR107W - Surface Mount Fast Recovery Rectifiers

This page provides the datasheet information for the FR107W, a member of the FR101W Surface Mount Fast Recovery Rectifiers family.

Description

Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.

Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.

Features

  • For surface mounted.

📥 Download Datasheet

Datasheet preview – FR107W

Datasheet Details

Part number FR107W
Manufacturer SEMIPOWER
File Size 114.80 KB
Description Surface Mount Fast Recovery Rectifiers
Datasheet download datasheet FR107W Datasheet
Additional preview pages of the FR107W datasheet.

📁 Similar Datasheet

  • FR107W - Surface Mount Fast Recovery Rectifiers (SEMTECH)
  • FR107W - SURFACE MOUNT FAST RECOVERY RECTIFIERS (MIC)
  • FR107W - Surface Mount Fast Recovery Rectifiers (BLUE ROCKET ELECTRONICS)
  • FR107 - FAST RECOVERY RECTIFIERS (Kingtronics)
  • FR107 - 1.0A Fast Recovery Silicon Rectifier (SEP ELECTRONIC)
  • FR107 - 1.0A FAST RECOVERY DIODE (WON-TOP)
  • FR107 - FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR107 - FAST RECOVERY RECTIFIER DIODES (EIC)
  • FR107 - FAST RECOVERY RECTIFIER (Rectron)
  • FR107 - Fast Recovery Rectifier (Yangzhou Yangjie)
Other Datasheets by SEMIPOWER
  • FR101W - Surface Mount Fast Recovery Rectifiers
  • FR102W - Surface Mount Fast Recovery Rectifiers
  • FR103W - Surface Mount Fast Recovery Rectifiers
  • FR104W - Surface Mount Fast Recovery Rectifiers
  • FR105W - Surface Mount Fast Recovery Rectifiers
  • FR106W - Surface Mount Fast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

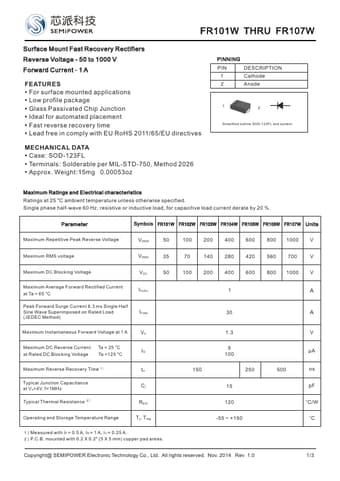

FR101W THRU FR107W Surface Mount Fast Recovery Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 1 A FEATURES ▪ For surface mounted applications ▪ Low profile package ▪ Glass Passivated Chip Junction ▪ Ideal for automated placement ▪ Fast reverse recovery time ▪ Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA ▪ Case: SOD-123FL ▪ Terminals: Solderable per MIL-STD-750, Method 2026 ▪ Approx. Weight:15mg 0.00053oz PINNING PIN DESCRIPTION 1 Cathode 2 Anode 12 Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.
