CS30-1200

SILICON CONTROLLED RECTIFIERS

CS30-1200 Features

* Repetitive Peak Off-State Voltage : 1200V

* R.M.S On-State Current ( IT(RMS)= 55 A )

* Low On-State Voltage (1.8V(Max.)@ ITM)

* RoHS Compliant K AG TO-3P K AG TO-247 PACKAGE ABSOLUTE MAXIMUM RATINGS ( TJ = 25°C UNLESS OTHERWISE SPECIFIED ) Symbol VDRM VRRM IT(R

CS30-1200 General Description

The CS30 Series SCR is suitable to fit modes of control found in applications such as voltage regulation circuits for motorbikes,over-voltage crowbar protection,motor control circuits in power tools and kitchen aids , inrush current limiting circuits ,capacitive discharge ignition. The insulated ful.

CS30-1200 Datasheet (89.73 KB)

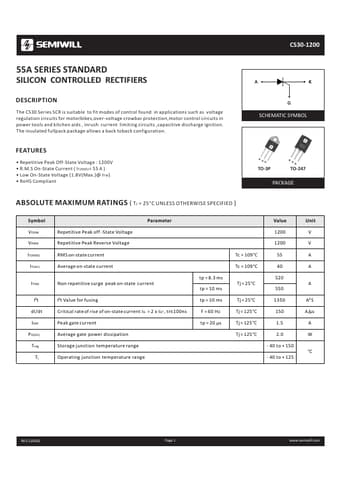

Preview of CS30-1200 PDF

Datasheet Details

Part number:

CS30-1200

Manufacturer:

SEMIWILL

File Size:

89.73 KB

Description:

Silicon controlled rectifiers.
