SMT-100 - Phase Control Thyristor

Datasheet Summary

Features

C Hermetic metal case with ceramic insulator C Capacity of supporting high surge current C International standard case Typical.

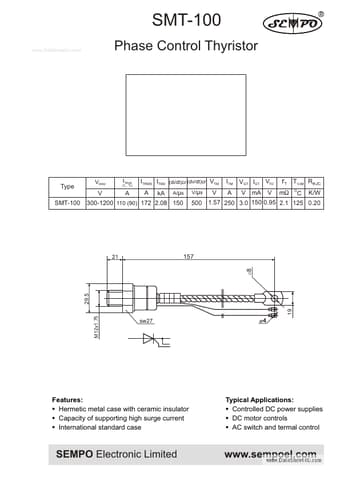

SMT-100 Phase Control Thyristor by SEMPO ELECTRONIC - Datasheet Preview — Datasheet preview – SMT-100

Datasheet Details

Part number	SMT-100
Manufacturer	SEMPO ELECTRONIC
File Size	65.78 KB
Description	Phase Control Thyristor
Datasheet	SMT-100 Datasheet
Additional preview pages of the SMT-100 datasheet.

📁 Similar Datasheet

SMT-1020T - Buzzer (Ningbo)
SMT-12 - Resonator (Projects Unlimited)
SMT-1265 - Buzzer (Ningbo)
SMT-1265A - Buzzer (Ningbo)
SMT-1265B - Buzzer (Ningbo)
SMT-1265C - Buzzer (Ningbo)
SMT-8030 - Buzzer (Ningbo)
SMT-8030B - Buzzer (Ningbo)
SMT-8030C - Buzzer (Ningbo)
SMT-8030S - Buzzer (Ningbo)

Other Datasheets by SEMPO ELECTRONIC

SMT-16 - Phase Control Thyristor
SMT-200 - Phase Control Thyristor
SMT-25 - Phase Control Thyristor
SMT-300 - Phase Control Thyristor
SMT-320 - Phase Control Thyristor
SMT-40 - Phase Control Thyristor
SMT-50 - Phase Control Thyristor

Full PDF Text Transcription

Click to expand full text

SMT-100 www.DataSheet4U.com Phase Control Thyristor Type SMT-100 VRRM ITAVM (TC, C) O ITRMS ITSM (di/dt)cr (dv/dt)cr VTM A kA A/µs V/µs ITM VGT IGT VTО A V mА V rT TVJM RthJC mS O V A V C K/W 300-1200 110 (90) 172 2.08 150 500 1.57 250 3.0 150 0.95 2.1 125 0.20 21 157 29.5 i8 M12x1.75 sw27 Features: C Hermetic metal case with ceramic insulator C Capacity of supporting high surge current C International standard case Typical Applications: C Controlled DC power supplies C DC motor controls C AC switch and termal control SEMPO Electronic Limited www.sempoel.

Published: Mar 6, 2009 |
