1N4007W, 1N4001W - Surface Mount General Purpose Silicon Rectifiers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4007W, 1N4001W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number 1N4007W, 1N4001W
Manufacturer SEMTECH
File Size 199.93 KB
Description Surface Mount General Purpose Silicon Rectifiers
Datasheet download datasheet 1N4001W-SEMTECH.pdf
Note This datasheet PDF includes multiple part numbers: 1N4007W, 1N4001W.
Please refer to the document for exact specifications by model.

1N4007W Product details

Description

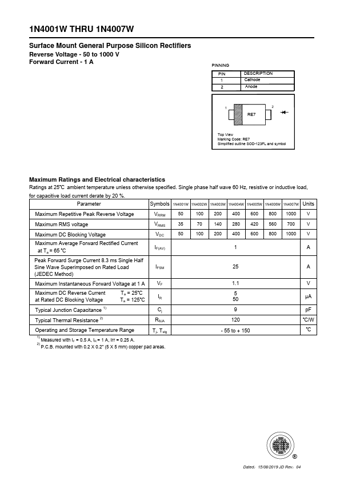

Cathode Anode 1 2 RE7 Top View Marking Code: RE7 Simplified outline SOD-123FL and symbol Maximum Ratings and Electrical characteristics Ratings at 25℃ ambient temperature unless otherwise specified.Single phase half wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.Parameter Symbols 1N4001W 1N4002W 1N4003W 1N4004W 1N4005W 1N4006W 1N4007W Units Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS voltage VRMS 35
