1N4935S - FAST RECOVERY RECTIFIERS

This page provides the datasheet information for the 1N4935S, a member of the 1N4933S FAST RECOVERY RECTIFIERS family.

Features

  • Low reverse leakage.
  • High forward surge current capability.
  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0.
  • Construction utilizes void-free molded plastic technique Mechanical Data.
  • Case: A-405, Molded plastic.
  • Terminals: Plated Axial leads, solderable per MIL-STD-750, method 2026.
  • Polarity: Color band denotes cathode end.
  • Mounting Position: Any A-405 0.025(0.65) 0.021(0.55) DIA. 0.

📥 Download Datasheet

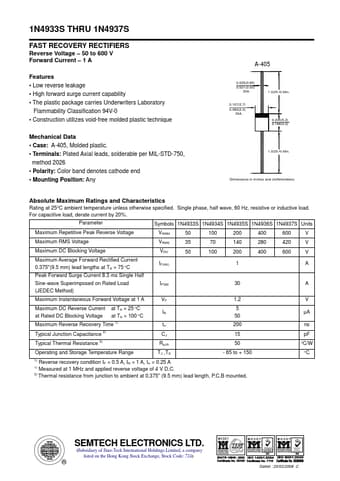

Datasheet preview – 1N4935S

Datasheet Details

Part number 1N4935S
Manufacturer SEMTECH
File Size 147.58 KB
Description FAST RECOVERY RECTIFIERS
Datasheet download datasheet 1N4935S Datasheet
Additional preview pages of the 1N4935S datasheet.

📁 Similar Datasheet

  • 1N4935S - Fast Switching Rectifiers (LRC)
  • 1N4935 - FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • 1N4935 - 1.0 Ampere Fast Recovery Rectifiers (Fairchild Semiconductor)
  • 1N4935 - Axial Leaded Fast Recovery Rectifiers (Formosa MS)
  • 1N4935 - FAST RECOVERY RECTIFIER (Rectron)
  • 1N4935 - 1A Fast Recovery Rectifiers (GOOD-ARK)
  • 1N4935 - FAST RECOVERY RECTIFIER (ZOWIE)
  • 1N4935 - FAST RECOVERY RECTIFIERS (Kingtronics)
  • 1N4935 - Fast Switching Plastic Rectifier (Vishay)
  • 1N4935 - 1.0A FAST RECOVERY DIODE (WON-TOP)
Other Datasheets by SEMTECH
  • 1N4933S - FAST RECOVERY RECTIFIERS
  • 1N4934S - FAST RECOVERY RECTIFIERS
  • 1N4936S - FAST RECOVERY RECTIFIERS
  • 1N4937S - FAST RECOVERY RECTIFIERS
  • 1N4942 - Fast Recovery Rectifier Diodes
  • 1N4944 - Fast Recovery Rectifier Diodes
  • 1N4946 - Fast Recovery Rectifier Diodes
  • 1N4947 - Fast Recovery Rectifier Diodes

Full PDF Text Transcription

Click to expand full text
1N4933S THRU 1N4937S FAST RECOVERY RECTIFIERS Reverse Voltage – 50 to 600 V Forward Current – 1 A Features • Low reverse leakage • High forward surge current capability • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 • Construction utilizes void-free molded plastic technique Mechanical Data • Case: A-405, Molded plastic. • Terminals: Plated Axial leads, solderable per MIL-STD-750, method 2026 • Polarity: Color band denotes cathode end • Mounting Position: Any A-405 0.025(0.65) 0.021(0.55) DIA. 0.107(2.7) 0.080(2.3) DIA. 1.0(25.4) Min. 0.205(5.2) 0.166(4.2) 1.0(25.4) Min. Dimensions in inches and (millimmeters) Absolute Maximum Ratings and Characteristics Rating at 25OC ambient temperature unless otherwise specified.
