1N5239, 1N5220 Datasheet - SEMTECH

1N5239 SILICON PLANAR ZENER DIODES

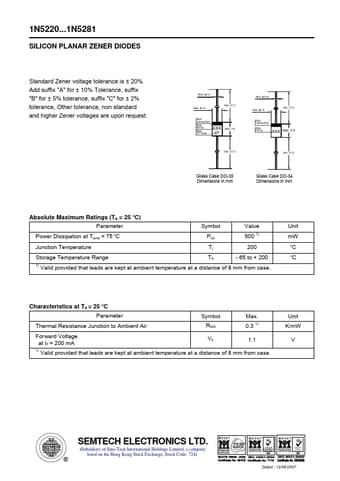

1N52201N5281 SILICON PLANAR ZENER DIODES Standard Zener voltage tolerance is ± 20%. Add suffix "A" for ± 10% Tolerance, suffix "B" for ± 5% tolerance, suffix "C" for ± 2% tolerance, Other tolerance, non standard and higher Zener voltages are upon request. Max. 0.5 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. Black "ST" Brand XXX ST Max. 3.9 Min. 27.5 Max. 0.45 Max. 1.9 Min. 27.5 Black Cathode Band Black Part No. XXX Max. 2.9 Min. 27.5 Glass Case DO-35 Dimensions in mm Gla.

1N5220-SEMTECH.pdf

This datasheet PDF includes multiple part numbers: 1N5239, 1N5220. Please refer to the document for exact specifications by model.
1N5239 Datasheet Preview Page 2 1N5239 Datasheet Preview Page 3

Datasheet Details

Part number:

1N5239, 1N5220

Manufacturer:

SEMTECH

File Size:

214.23 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N5239, 1N5220.
Please refer to the document for exact specifications by model.
