1SMB5946B, 1SMB5913B - Surface Mount Silicon Zener Diodes

Name: 1SMB5946B
SKU: 1SMB5946B-1286526

SEMTECH

The 1SMB5946B by SEMTECH is a Surface Mount Silicon Zener Diodes. Below is the official datasheet preview.

Datasheet Details

Part number	1SMB5946B, 1SMB5913B
Manufacturer	SEMTECH
File Size	582.76 KB
Description	Surface Mount Silicon Zener Diodes
Datasheet	1SMB5913B-SEMTECH.pdf
Note	This datasheet PDF includes multiple part numbers: 1SMB5946B, 1SMB5913B. Please refer to the document for exact specifications by model.

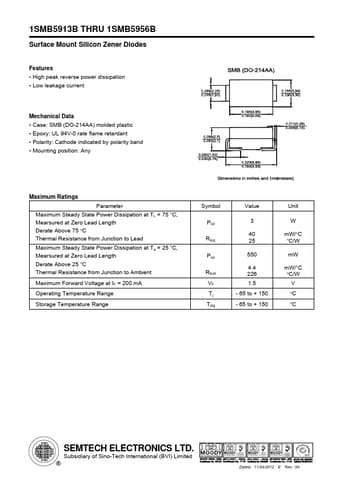

Additional preview pages of the 1SMB5946B datasheet.

High peak reverse power dissipation.
Low leakage current Mechanical Data.
Case: SMB (DO-214AA) molded plastic.
Epoxy: UL 94V-0 rate flame retardant.
Polarity: Cathode indicated by polarity band.
Mounting position: Any Maximum Ratings Parameter Maximum Steady State Power Dissipation at TL = 75 OC, Mearsured at Zero Lead Length Derate Above 75 OC Thermal Resistance from Junction to Lead Maximum Steady State Power Dissipation at Ta = 25 OC, Me.
