2SC1740 - NPN Silicon Transistor

2SC1740 Description

ST 2SC1740 NPN Silicon Epitaxial Planar Transistor for switching and AF amplifier applications.The transistor is subdivided into four groups Q, R, S .

2SC1740 Applications

* The transistor is subdivided into four groups Q, R, S and E. according to its DC current gain. On special request, these transistors can be manufactured in different pin configurations. TO-92 Plastic Package Weight approx. 0.19g Absolute Maximum Ratings (Ta = 25? ) Symbol Value 60 50 5 150 300 1

📥 Download Datasheet

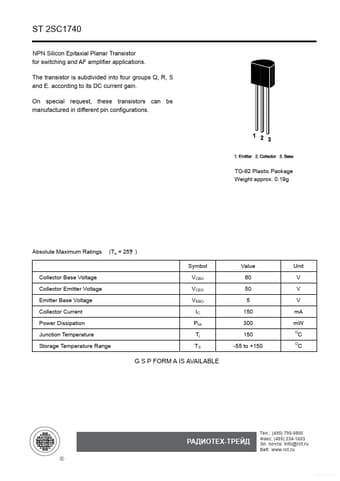

Preview of 2SC1740 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1740
Manufacturer
SEMTECH
File Size
426.36 KB
Datasheet
2SC1740-SEMTECH.pdf
Description
NPN Silicon Transistor
