2SK1118 N-Channel MOSFET

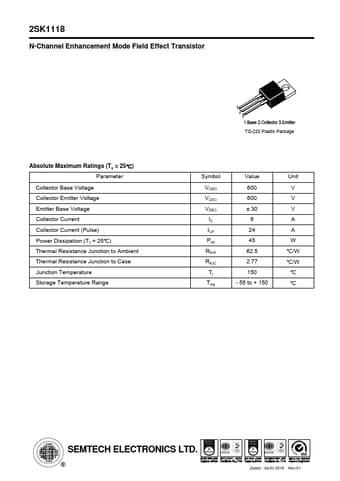

2SK1118 N-Channel Enhancement Mode Field Effect Transistor Absolute Maximum Ratings (Ta = 25℃) Parameter Collector Base Voltage Collector Emitter Voltage Emitter Base Voltage Collector Current Collector Current (Pulse) Power Dissipation (Tc = 25℃) Thermal Resistance Junction to Ambient Thermal Resistance Junction to Case Junction Temperature Storage Temperature Range TO-220 Plastic Package Symbol VCBO VCEO VEBO IC ICP Ptot RθJA RθJC Tj Tstg Value 600 600 ± 30 6 24 45 62.5 2.77 150 - 55 to + .

2SK1118 Datasheet (351.80 KB)
