7809R

3-terminal 1A positive voltage regulator

7809R Features

* Output current up to 1 A

* Internal thermal overload protection

* Output transistor safe operating area protection 1. INPUT 2.GND 3.OUTPUT Absolute Maximum Ratings (Ta = 25 OC) Parameter Input Voltage Thermal Resistance Junction-Air Operating Junction Temperature Storage

7809R Datasheet (193.88 KB)

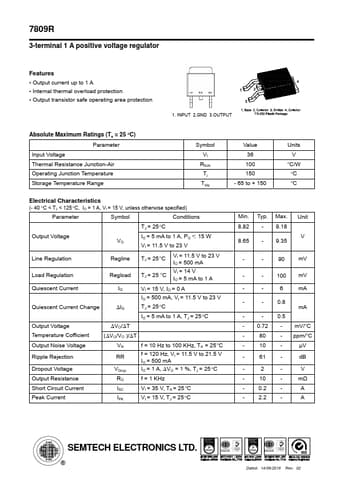

Preview of 7809R PDF

Datasheet Details

Part number:

7809R

Manufacturer:

SEMTECH

File Size:

193.88 KB

Description:

3-terminal 1a positive voltage regulator.
