DB4 Datasheet - SEMTECH

DB4 SILICON BIDIRECTIONAL DIACS

DB3, DB4, DC34 SILICON BIDIRECTIONAL DIACS The glass passivated, three-layer, two terminal, axial lead, hermetically sealed diacs are designed specifically for triggering thyristors. They demonstrate low breakover current at breakover voltage as they withstand peak pulse current. These diacs are intended for use in thyristor phase control, circuits for lamp-dimming, universal-motor speed controls, and heat controls. Max. 0.5 Max. 1.9 Min. 27.5 Black Part No. Black "ST" Brand XXX Max. 3.9 ST .

DB4-SEMTECH.pdf

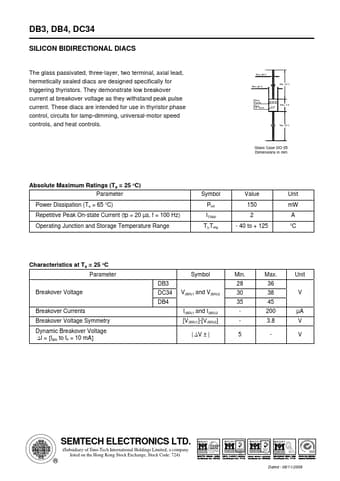

Preview of DB4 PDF
DB4 Datasheet Preview Page 2

Datasheet Details

Part number:

DB4

Manufacturer:

SEMTECH

File Size:

191.45 KB

Description:

Silicon bidirectional diacs.
