DF08, DF005 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER

DF08 Description

DF005 THRU DF10 SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER Reverse Voltage * 50 to 1000 V Forward Current * 1 A .

DF08 Features

* Glass passivated chip junction
* Low forward voltage drop
* High surge overload rating of 50 Amperes peak
* Ideal for printed circuit board Mechanical Data
* Case: Molded plastic, DB
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Leads solderable per MIL-STD-202,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF08, DF005. Please refer to the document for exact specifications by model.

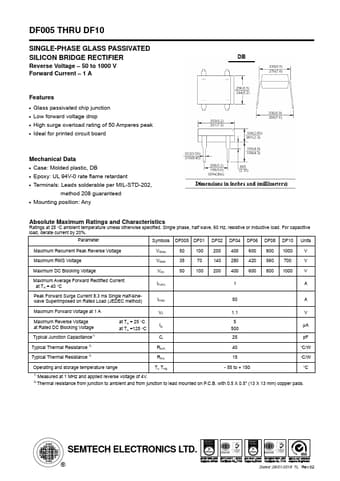

datasheet Preview Page 2

Datasheet Details

Part number
DF08, DF005
Manufacturer
SEMTECH
File Size
337.46 KB
Datasheet
DF005-SEMTECH.pdf
Description
SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DF08, DF005.
Please refer to the document for exact specifications by model.
