DF08M, DF005M MINIATURE GLASS PASSIVATED SINGLE-PHASE-BRIDGE RECTIFIERS

DF08M Description

DF005M THRU DF10M MINIATURE GLASS PASSIVATED SINGLE-PHASE-BRIDGE RECTIFIERS .

DF08M Features

* Plastic package used has Underwriters Laboratory Flammability Classification 94V-0
* Glass passivated chip junctions
* Surge overload rating of 50 Amperes peak
* Ideal for printed circuit boards
* High temperature soldering guaranteed: 260 OC/10 seconds at 5 Ibs. (2.3Kg) tensio

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF08M, DF005M. Please refer to the document for exact specifications by model.

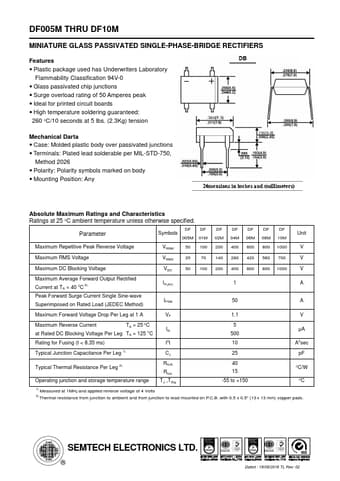

datasheet Preview Page 2

Datasheet Details

Part number
DF08M, DF005M
Manufacturer
SEMTECH
File Size
151.31 KB
Datasheet
DF005M-SEMTECH.pdf
Description
MINIATURE GLASS PASSIVATED SINGLE-PHASE-BRIDGE RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: DF08M, DF005M.
Please refer to the document for exact specifications by model.
