ES2AF - Glass Passivated Super Fast Rectifier

ES2AF Description

ES2AF THRU ES2JF Glass Passivated Super Fast Rectifier Reverse Voltage - 50 to 600 V Forward Current - 2 A .

ES2AF Features

* Glass Passivated Chip Juntion

ES2AF Applications

* Low profile package
* Superfast reverse recovery time Mechanical Data
* Case: SMAF
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 SMAF 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 0.9 1.1 0.12 0.2 All Dimensions in mm Absolute Maximum Ratings and Chara

📥 Download Datasheet

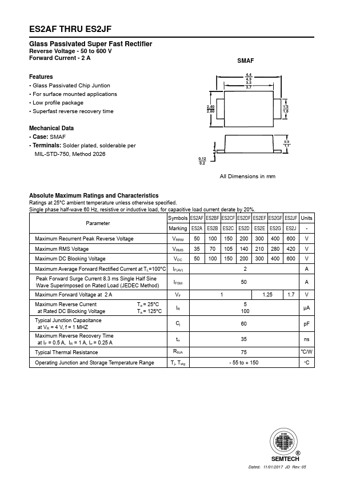

Preview of ES2AF PDF
datasheet Preview Page 2

Datasheet Details

Part number
ES2AF
Manufacturer
SEMTECH
File Size
273.23 KB
Datasheet
ES2AF-SEMTECH.pdf
Description
Glass Passivated Super Fast Rectifier
