KBPC2506, KBPC25005 - HIGH CURRENT SINGLE-PHASE SILICON BRIDGE RECTIFIERS

Name: KBPC2506
SKU: KBPC2506-1215021

SEMTECH

The KBPC2506 by SEMTECH is a HIGH CURRENT SINGLE-PHASE SILICON BRIDGE RECTIFIERS. Below is the official datasheet preview.

Datasheet Details

Part number	KBPC2506, KBPC25005
Manufacturer	SEMTECH
File Size	166.38 KB
Description	HIGH CURRENT SINGLE-PHASE SILICON BRIDGE RECTIFIERS
Datasheet	KBPC25005-SEMTECH.pdf
Note	This datasheet PDF includes multiple part numbers: KBPC2506, KBPC25005. Please refer to the document for exact specifications by model.

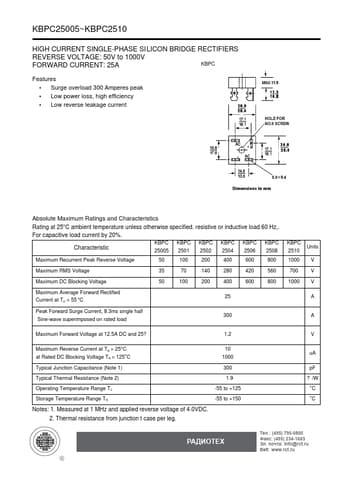

Additional preview pages of the KBPC2506 datasheet.

Surge overload 300 Amperes peak.
Low power loss, high efficiency.
Low reverse leakage current Absolute Maximum Ratings and Characteristics Rating at 25oC ambient temperature unless otherwise specified. resistive or inductive load 60 Hz,. For capacitive load current by 20%. Characteristic KBPC KBPC KBPC KBPC KBPC KBPC 25005 2501 2502 2504 2506 2508 Maximum Recurrent Peak Reverse Voltage 50 100 200 400 600 800 KBPC Units 2510 1000 V Maximum RMS Voltage 35 70 14.
