MBRA100, MBRA120, SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

MBRA120 THRU MBRA100 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 V Forward Current - 1 A .

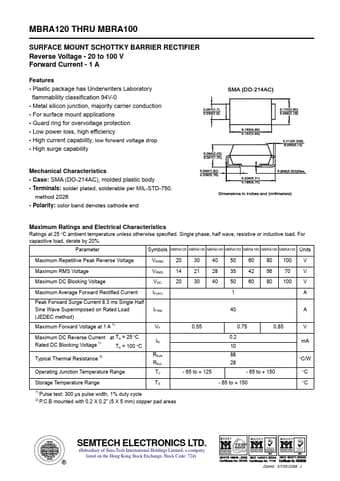

datasheet Preview Page 1 from Datasheet4u.com

MBRA120-SEMTECH.pdf

MBRA100 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRA100, MBRA120. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRA100, MBRA120

Manufacturer:

SEMTECH

File Size:

211.94 KB

Description:

SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: MBRA100, MBRA120.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory flammability classification 94V-0
* Metal silicon junction, majority carrier conduction

Applications

* Guard ring for overvoltage protection
* Low power loss, high efficiency
* High current capability, low forward voltage drop
* High surge capability Mechanical Characteristics
* Case: SMA (DO-214AC), molded plastic body
* Terminals: solder plated, so
