MBRF20100CT, MBRF2070CT DUAL SCHOTTKY RECTIFIERS

MBRF20100CT Description

MBRF2070CT THRU MBRF20100CT DUAL SCHOTTKY RECTIFIERS Reverse Voltage - 70 to 100 V Forward Current - 20 A .

MBRF20100CT Features

* High surge capability

MBRF20100CT Applications

* Metal silicon junction, majority carrier conduction
* High current capability, low forward voltage drop
* Guard ring for over voltage protection Mechanical Data
* Case: ITO-220AB, molded plastic body
* Terminals: Solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF20100CT, MBRF2070CT. Please refer to the document for exact specifications by model.

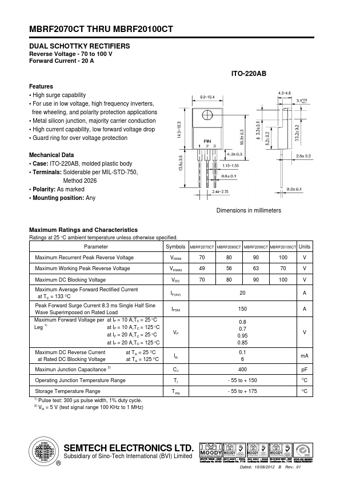

datasheet Preview Page 2

Datasheet Details

Part number
MBRF20100CT, MBRF2070CT
Manufacturer
SEMTECH
File Size
236.39 KB
Datasheet
MBRF2070CT-SEMTECH.pdf
Description
DUAL SCHOTTKY RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBRF20100CT, MBRF2070CT.
Please refer to the document for exact specifications by model.
