MM1Z5222B, MM1Z5221B Datasheet - SEMTECH

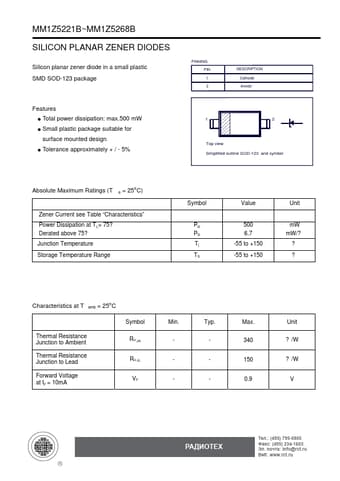

MM1Z5222B SILICON PLANAR ZENER DIODES

Cathode Anode 12 Top view Simplified outline SOD-123 and symbol Absolute Maximum Ratings (T a = 25oC) Zener Current see Table “Characteristics” Power Dissipation at TL= 75? Derated above 75? Junction Temperature Storage Temperature Range Symbol PD PD Tj TS Value 500 6.7 -55 to +150 -55 to +150 .

MM1Z5221B-SEMTECH.pdf

This datasheet PDF includes multiple part numbers: MM1Z5222B, MM1Z5221B. Please refer to the document for exact specifications by model.
MM1Z5222B Datasheet Preview Page 2 MM1Z5222B Datasheet Preview Page 3

Datasheet Details

Part number:

MM1Z5222B, MM1Z5221B

Manufacturer:

SEMTECH

File Size:

375.93 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: MM1Z5222B, MM1Z5221B.
Please refer to the document for exact specifications by model.
