MMUN2115 Datasheet - SEMTECH

MMUN2115 PNP Silicon Epitaxial Planar Transistor

MMUN2111…MMUN2134 PNP Silicon Epitaxial Planar Transistor for switching and interface circuit and drive circuit applications Resistor Values Type MMUN2111 MMUN2112 MMUN2113 MMUN2114 MMUN2115 MMUN2116 MMUN2130 MMUN2131 MMUN2132 MMUN2133 MMUN2134 R1 (K) 10 22 47 10 10 4.7 1 2.2 4.7 4.7 22 R2 (K) 10 22 47 47 ∞ ∞ 1 2.2 4.7 47 47 SOT-23 Plastic Package Base (Input) R1 R2 Collector (Output) Emitter (Common) Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitte.

MMUN2115 Datasheet (207.02 KB)

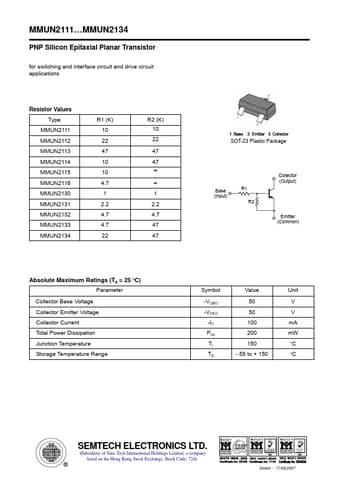

Preview of MMUN2115 PDF

Datasheet Details

Part number:

MMUN2115

Manufacturer:

SEMTECH

File Size:

207.02 KB

Description:

Pnp silicon epitaxial planar transistor.
