P9V1FB Datasheet - SEMTECH

P9V1FB Silicon Epitaxial Planar Zener Diodes

PFB Series Silicon Epitaxial Planar Zener Diodes Applications Circuits for constant voltage, constant current, wave form clipper, surge absorber, etc. Max. 0.7 Max. 2.8 Min. 25.4 Black Cathode Band Black Part No. Black "ST" Brand XXX ST Max. 4.2 Min. 25.4 Absolute Maximum Ratings (Ta = 25 OC) Parameter Power Dissipation Forward Current Junction Temperature Storage Temperature Range Symbol Ptot IF Tj Tstg Glass Case DO-41 Dimensions in mm Value 1 200 175 - 65 to + 175 Unit W.

P9V1FB Datasheet (287.97 KB)

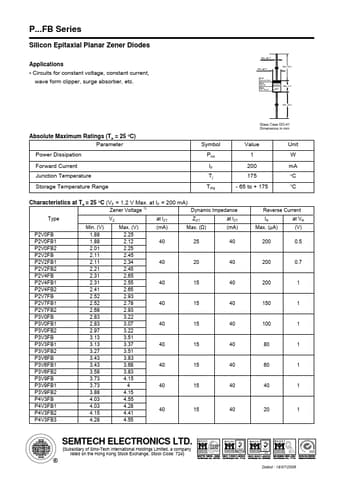

Preview of P9V1FB PDF
P9V1FB Datasheet Preview Page 2 P9V1FB Datasheet Preview Page 3

Datasheet Details

Part number:

P9V1FB

Manufacturer:

SEMTECH

File Size:

287.97 KB

Description:

Silicon epitaxial planar zener diodes.
