R2500

The R2500 is HIGH VOLTAGE SILICON RECTIFIERS designed by SEMTECH.

Product Overview

SEMTECH

📥 Download Datasheet

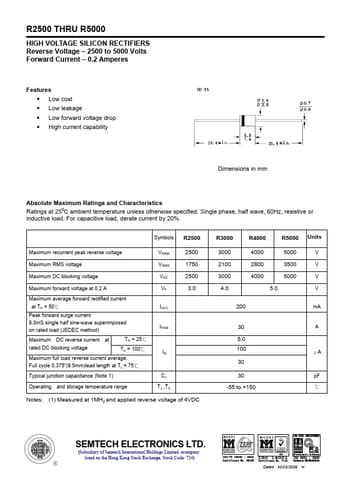

R2500 HIGH VOLTAGE SILICON RECTIFIERS by SEMTECH - Datasheet Preview — Datasheet preview – R2500

Datasheet Details

Part number	R2500
Manufacturer	SEMTECH
File Size	272.08 KB
Description	HIGH VOLTAGE SILICON RECTIFIERS
Datasheet	R2500-SEMTECH.pdf
Additional preview pages of the R2500 datasheet.

Product details

Features

Low cost.
Low leakage.
Low forward voltage drop.
High current capability Dimensions in mm Absolute Maximum Ratings and Characteristics Ratings at 250C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols R2500 Maximum recurrent peak reverse voltage VRRM 2500 Maximum RMS voltage VRMS 1750 Maximum DC blocking voltage VDC 2500 Maximum forward vo.
