RClamp0572ZC

300fF ESD Protection

RClamp0572ZC Features

* High ESD withstand voltage Œ IEC 61000-4-2 (ESD) 15kV (air), 10kV (contact)

* Ultra-small 0201package

* Working voltage: 5V

* Protects two high-speed data lines

* Low reverse leakage current:

RClamp0572ZC General Description

RClamp®0572ZC is an ultra low capacitance ESD protection device designed to protect two high-speed lines in an 0201 footprint. This revolutionary package design reduces board space requirements by more than 50% over existing single line solutions. RClamp0572ZC is a three pin device with identical lo.

RClamp0572ZC Datasheet (515.24 KB)

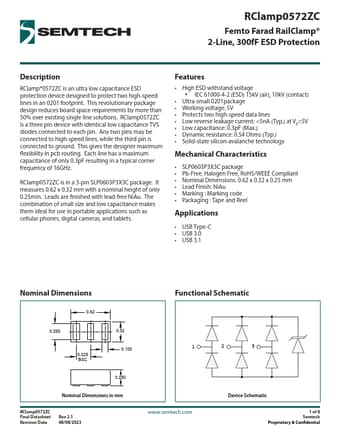

Preview of RClamp0572ZC PDF

Datasheet Details

Part number:

RClamp0572ZC

Manufacturer:

SEMTECH

File Size:

515.24 KB

Description:

300ff esd protection.
