S5G Surface Mount General Rectifiers

SEMTECH

S5G Description

S5A THRU S5M Surface Mount General Rectifiers Reverse Voltage - 50 to 1000 V Forward Current - 5 A .

S5G Features

* The plastic package carries Underwrites Laboratory flammability classification 94V-0

S5G Applications

* Low reverse leakage
* Built-in strain relief, ideal for automated placement
* High forward surge current capability Mechanical Data
* Case: JEDEC DO-214AB molded plastic body
* Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

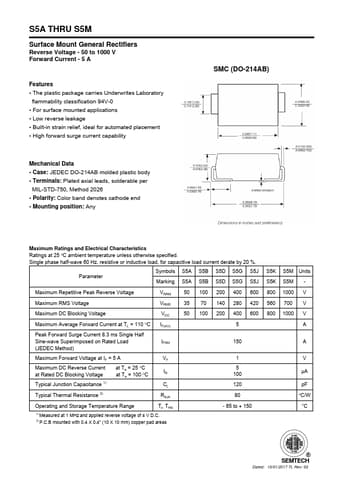

S5G Datasheet Preview — Preview of S5G PDF

Datasheet Details

Part number: S5G
Manufacturer: SEMTECH
File Size: 331.25 KB
Datasheet: S5G-SEMTECH.pdf
Description: Surface Mount General Rectifiers
