SR38, SR32 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

SR38 Description

SR32 THRU SR39 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS Reverse Voltage * 20 to 90 V Forward Current * 3 A .

SR38 Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Metal silicon junction, majority carrier conduction
* Built-in strain relief, ideal for automated placement
* Low power loss, High efficiency
* High forward surge current

SR38 Applications

* High temperature soldering guaranteed: 250 OC /10 seconds at terminals. Mechanical Data
* Case: Molded plastic body, JEDEC DO-214AA
* Terminals: leads solderable per MIL-STD-750, method 2026
* Polarity: Color band denotes cathode end.
* Mounting Position: An

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR38, SR32. Please refer to the document for exact specifications by model.

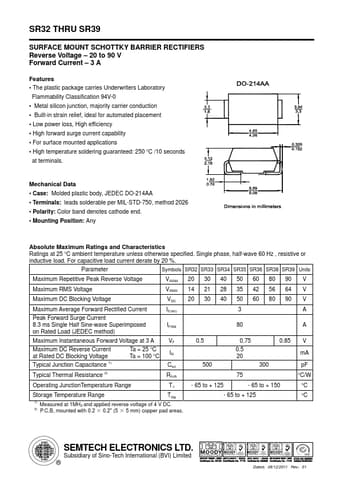

datasheet Preview Page 2

Datasheet Details

Part number
SR38, SR32
Manufacturer
SEMTECH
File Size
219.88 KB
Datasheet
SR32-SEMTECH.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SR38, SR32.
Please refer to the document for exact specifications by model.
