US1JF, US1AF Surface Mount Ultrafast Recovery Rectifier

US1JF Description

US1AF THRU US1MF Surface Mount Ultrafast Recovery Rectifier Reverse Voltage * 50 to 1000 V Forward Current * 1 A .

US1JF Features

* Glass Passivated Chip Juntion

US1JF Applications

* Low profile package
* Easy to pick and place
* High efficiency SMAF 4.4 4.9 3.3 3.7 2.40 2.80 1.3 1.6 Mechanical Data
* Case: SMAF
* Terminals: Solderable per MIL-STD-750, method 2026 0.12 0.2 0.9 1.1 Maximum Ratings and Electrical Characteristics All

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: US1JF, US1AF. Please refer to the document for exact specifications by model.

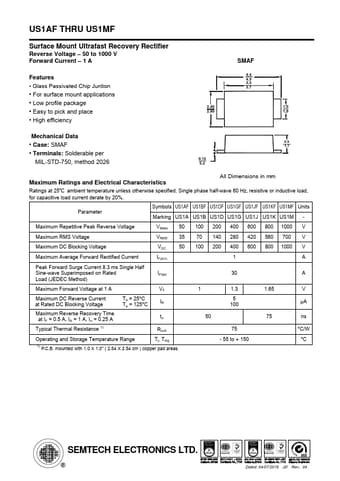

datasheet Preview Page 2
