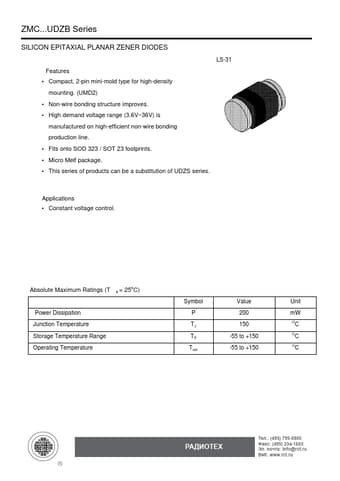

ZMC3.9UDZB Datasheet, Diodes, SEMTECH

✔ ZMC3.9UDZB Features

Compact, 2-pin mini-mold type for high-density LS-31 mounting. (UMD2)
Non-wire bonding structure improves.
High demand voltage range (3.6V~36V) is manufactured

✔ ZMC3.9UDZB Application

Constant voltage control. Absolute Maximum Ratings (T a = 25oC) Power Dissipation Junction Temperature St

PDF File Details

SEMTECH manufacturer logo

Part number:

ZMC3.9UDZB

Manufacturer:

SEMTECH

File Size:

167.71kb

Download:

📄 Datasheet

Description:

Silicon epitaxial planar zener diodes.

📥 Download PDF (167.71kb)
