ZMM10HSB - Silicon Epitaxial Planar Zener Diodes

This page provides the datasheet information for the ZMM10HSB, a member of the ZMM2V0HS Silicon Epitaxial Planar Zener Diodes family.

📥 Download Datasheet

Datasheet preview – ZMM10HSB

Datasheet Details

Part number ZMM10HSB
Manufacturer SEMTECH
File Size 527.87 KB
Description Silicon Epitaxial Planar Zener Diodes
Datasheet download datasheet ZMM10HSB Datasheet
Additional preview pages of the ZMM10HSB datasheet.

📁 Similar Datasheet

  • ZMM10 - Silicon Planar Zener Diodes (General Semiconductor)
  • ZMM10 - 500mW SURFACE MOUNT ZENER DIODE (Diodes Incorporated)
  • ZMM10 - Silicon Epitaxial Planar Zener Diodes (CHINA BASE)
  • ZMM10 - SMD Planar Zener Diodes (Diotec)
  • ZMM10 - Sealed Glass Zener Voltage Regulators (LRC)
  • ZMM10 - Silicon Epitaxial Planar Zener Diodes (Suntan)
  • ZMM10 - Silicon Epitaxial Planar Zener Diodes (Kingtronics)
  • ZMM10 - SILICON EPITAXIAL PLANAR ZENER DIODES (HY)
  • ZMM10 - 0.5W SILICON PLANAR ZENER DIODES (JINAN JINGHENG)
  • ZMM10 - Silicon Epitaxial Planar Zener Diodes (JGD)
Other Datasheets by SEMTECH
  • ZMM10HS - Silicon Epitaxial Planar Zener Diodes
  • ZMM10HSA - Silicon Epitaxial Planar Zener Diodes
  • ZMM10HSC - Silicon Epitaxial Planar Zener Diodes
  • ZMM10 - Silicon Epitaxial Planar Zener Diodes
  • ZMM11 - Silicon Epitaxial Planar Zener Diodes
  • ZMM11HS - Silicon Epitaxial Planar Zener Diodes
  • ZMM11HSA - Silicon Epitaxial Planar Zener Diodes
  • ZMM11HSB - Silicon Epitaxial Planar Zener Diodes

Full PDF Text Transcription

Click to expand full text

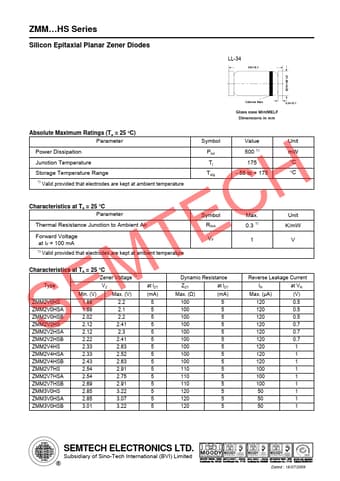

ZMM…HS Series Silicon Epitaxial Planar Zener Diodes LL-34 Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Value Unit SEMTECH Power Dissipation Junction Temperature Storage Temperature Range 1) Valid provided that electrodes are kept at ambient temperature Ptot 500 1) mW Tj 175 OC Tstg - 55 to + 175 OC Characteristics at Ta = 25 OC Parameter Thermal Resistance Junction to Ambient Air Forward Voltage at IF = 100 mA 1) Valid provided that electrodes are kept at ambient temperature Symbol RthA VF Characteristics at Ta = 25 OC Zener Voltage 1) Type VZ Min. (V) Max. (V) ZMM2V0HS 1.88 2.2 ZMM2V0HSA 1.88 2.1 ZMM2V0HSB 2.02 2.2 ZMM2V2HS 2.12 2.41 at lZT (mA) 5 5 5 5 Dynamic Resistance ZZT Max. (Ω) at lZT (mA) 100 5 100 5 100 5 100 5 Max. 0.
