ZMY1 Datasheet - SEMTECH

ZMY1 SILICON PLANAR POWER ZENER DIODES

ZMY1ZMY100(1W) SILICON PLANAR POWER ZENER DIODES for use in stabilizing and clipping circuits with high power rating. The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are upon request. LL-41 Cathode band Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Power Dissipation Ptot Junction Temperature Tj Storage Temperature Range TS 1) Valid provided that electrodes are kept at ambient temperature. Value 1 1) 175 -55 to +175 Unit .

ZMY1-SEMTECH.pdf

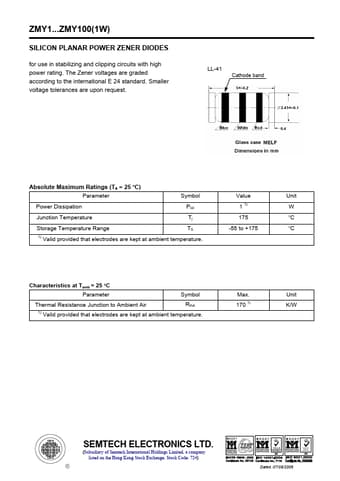

Preview of ZMY1 PDF
ZMY1 Datasheet Preview Page 2 ZMY1 Datasheet Preview Page 3

Datasheet Details

Part number:

ZMY1

Manufacturer:

SEMTECH

File Size:

283.61 KB

Description:

Silicon planar power zener diodes.
