ZMY30 SILICON PLANAR POWER ZENER DIODES

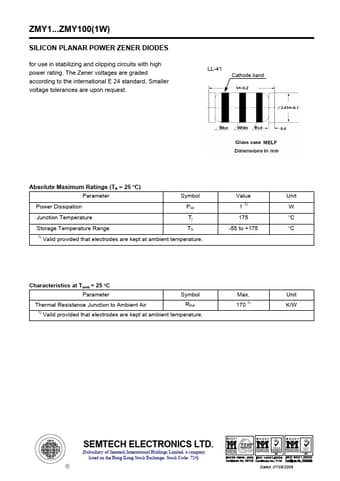

ZMY1ZMY100(1W) SILICON PLANAR POWER ZENER DIODES for use in stabilizing and clipping circuits with high power rating. The Zener voltages are graded according to the international E 24 standard. Smaller voltage tolerances are upon request. LL-41 Cathode band Absolute Maximum Ratings (Ta = 25 OC) Parameter Symbol Power Dissipation Ptot Junction Temperature Tj Storage Temperature Range TS 1) Valid provided that electrodes are kept at ambient temperature. Value 1 1) 175 -55 to +175 Unit .
