uClamp0301PQ

Low Voltage TVS

uClamp0301PQ Features

* u Transient protection for data lines to IEC 61000-4-2 (ESD) IEC 61000-4-4 (EFT) Cable Discharge Event (CDE) u Ultra-small package u Protects one data line u Low clamping voltage u Working voltage: 3.0V u Low leakage current u Solid-state silicon-avalanche technology u AEC-Q100 Grade 3 Qualified Mech

uClamp0301PQ General Description

The µClamp® TVS diodes are designed for automobile applications and qualified to AEC-Q100 Grade3. They offer superior electrical characteristics such as lower clamping voltage and no device degradation when compared to other technologies. They are designed to protect sensitive semiconductor component.

uClamp0301PQ Datasheet (633.11 KB)

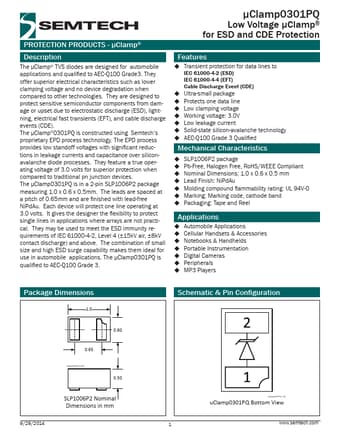

Preview of uClamp0301PQ PDF

Datasheet Details

Part number:

uClamp0301PQ

Manufacturer:

SEMTECH

File Size:

633.11 KB

Description:

Low voltage tvs.
