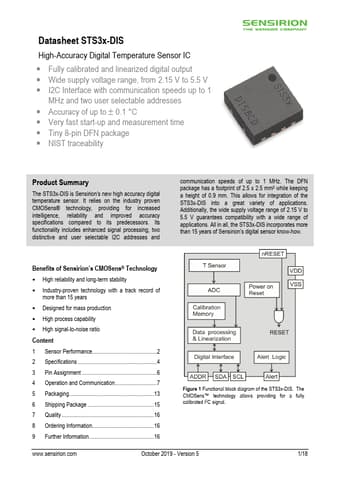

STS35-DIS
Datasheet STS3x-DIS
High-Accuracy Digital Temperature Sensor IC
- Fully calibrated and linearized digital output
- Wide supply voltage range, from 2.15 V to 5.5 V
- I2C Interface with munication speeds up to 1
MHz and two user selectable addresses
- Accuracy of up to 0.1 °C
- Very fast start-up and measurement time
- Tiny 8-pin DFN package
- NIST traceability
Product Summary
The STS3x-DIS is Sensirion’s new high accuracy digital temperature sensor. It relies on the industry proven CMOSens® technology, providing for increased intelligence, reliability and improved accuracy specifications pared to its predecessors. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and munication speeds of up to 1 MHz. The DFN package has a footprint of 2.5 x 2.5 mm2 while keeping a height of 0.9 mm. This allows for integration of the STS3x-DIS into a great variety of applications. Additionally, the wide supply voltage range of 2.15 V to 5.5 V...
