1N4972US Datasheet - SENSITRON SEMICONDUCTOR

1N4972US Zener 5W Voltage Regulator

SENSITRON SEMICONDUCTOR SS4954/US thru SS4996/US TECHNICAL DATA DATA SHEET 5069, REV. A Zener 5W Voltage Regulator Hermetic, non-cavity glass package Metallurgically bonded Operating and Storage Temperature: -65oC to +175oC Manufactured and screened to MIL-PRF-19500/356 per Sensitron specification 7700-409x SERIES TYPE VZ NOM TEST CURRENT IZ 5W V mA 1N4954/US 6.8 175 1N4955/US 7.5 175 1N4956/US 8.2 150 1N4957/US 9.1 150 1N4958/US 10 125 .

1N4972US Datasheet (95.57 KB)

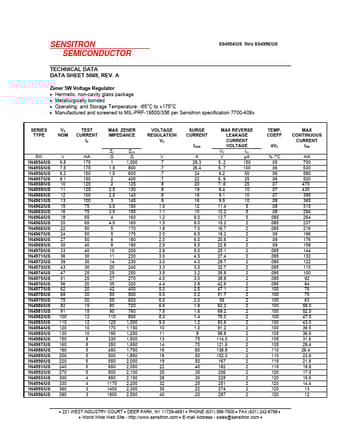

Preview of 1N4972US PDF
1N4972US Datasheet Preview Page 2 1N4972US Datasheet Preview Page 3

Datasheet Details

Part number:

1N4972US

Manufacturer:

SENSITRON Semiconductor ↗

File Size:

95.57 KB

Description:

Zener 5w voltage regulator.
