KBPC5010

50.0A Single-Phase Silicon Bridge Rectifier

KBPC5010 Features

* 16.2 + 0.5 Hole for # 10 Screw 5.35 + 0.25DIA. This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting

KBPC5010 Datasheet (32.13 KB)

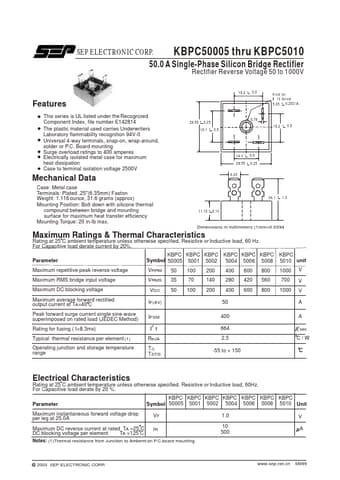

Preview of KBPC5010 PDF

Datasheet Details

Part number:

KBPC5010

Manufacturer:

SEP ELECTRONIC

File Size:

32.13 KB

Description:

50.0a single-phase silicon bridge rectifier.
