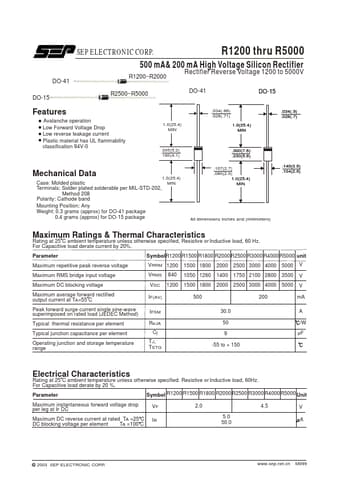

R5000
Features
Avalanche operation Low Forward Voltage Drop Low reverse leakage current Plastic material has UL flammability classification 94V-0
1.0(25.4) MIN
205(5.2) 160(4.1)
.034(.86) .028(.71)
1.0(25.4) MIN
.300(7.6) .230(5.8)
Mechanical Data
1.0(25.4)
Case: Molded plastic
Terminals: Solder plated solderable per MIL-STD-202,
Method 208 Polarity: Cathode band
Mounting Position: Any
Weight: 0.3 grams (approx) for DO-41 package
0.4 grams (approx) for DO-15 package
.107(2.7) .080(2.0)
1.0(25.4) MIN
All dimensions inches and (millimeters)
.034(.9) .028(.7)
.140(3.6) .104(2.6)
Maximum Ratings & Thermal Characteristics
Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.
For Capacitive load derate current by 20%.
Parameter
Symbol R1200 R1500 R1800...
