S3G

3.0 A Surface Mount Silicon Rectifier

S3G Features

* Ideal for surface mount application Surge overload rating to 100A peak Plastic material has UL recognition flammability classification 94V-0 Buit-in strain relief Mechanical Data Case: Molded plastic Terminals: Solder plated solderable per MIL-STD-202F, Method 208 Polarity: Color band denotes cathod

S3G Datasheet (25.93 KB)

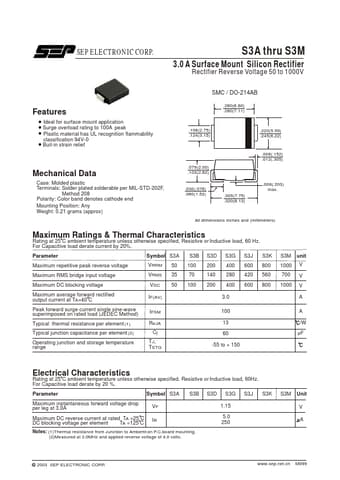

Preview of S3G PDF

Datasheet Details

Part number:

S3G

Manufacturer:

SEP ELECTRONIC

File Size:

25.93 KB

Description:

3.0 a surface mount silicon rectifier.
