SF57, SF51 5.0A Super Fast Recovery Rectifier

SF57 Description

SEP ELECTRONIC CORP.SF51 thru SF57 5.0 A Super Fast Recovery Rectifier Rectifier Reverse Voltage 50 to 600V DO-27 .

SF57 Features

* Diffused junction Fast switching for high efficiency High current capability and low Forward Voltage Drop Surge overload rating to 150A peak Low reverse leakage current Plastic material has UL flammability classification 94V-0 Mechanical Data Case: Molded plastic Terminals: Solder plated solderable

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SF57, SF51. Please refer to the document for exact specifications by model.

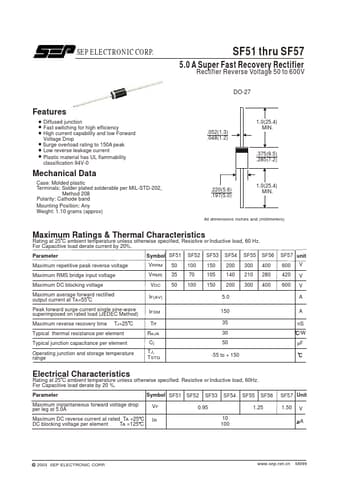

datasheet Preview Page 2

Datasheet Details

Part number
SF57, SF51
Manufacturer
SEP ELECTRONIC
File Size
31.59 KB
Datasheet
SF51-SEPELECTRONIC.pdf
Description
5.0A Super Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: SF57, SF51.
Please refer to the document for exact specifications by model.
