SGM2013 - Linear Regulators

SGM2013 Description

SGM2013 300mA, Low Power, Low Dropout, 3-Terminal, Linear Regulator GENERAL .
The SGM2013 is a 3-terminal, low power and low dropout linear regulator.

SGM2013 Features

* include output current limit and thermal shutdown protection. The SGM2013 is available in a Green SOT-89-3 package. It operates over an operating temperature range of -40℃ to +125℃. FEATURES
* Operating Input Voltage Range: 2.5V to 5.5V
* Fixed Output Voltages: 1.2V, 1.5V, 1.8V, 2.5V, 2.8V,

SGM2013 Applications

* Modems MP3 Players Cellular Telephones PCMCIA Cards Palmtop Computers Portable Electronics TYPICAL APPLICATION VIN CIN 1μF IN OUT SGM2013 GND VOUT COUT 1μF Figure 1. Typical Application Circuit SG Micro Corp www. sg-micro. com APRIL 2016
* REV. D SGM2013 300mA, Low Power, Low Dropo

📥 Download Datasheet

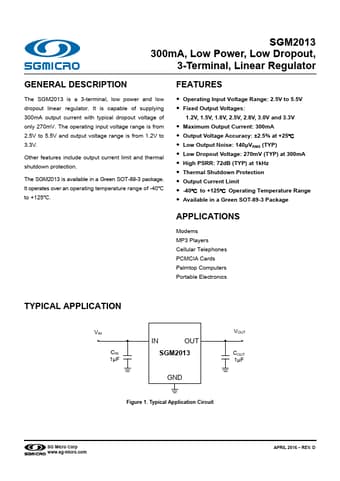

Preview of SGM2013 PDF
