SGM2033

Ultra-Low Noise and High PSRR LDO Regulators

SGM2033 Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2033 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2033 is suitable for application which needs low noise and fast transient response power supply,

SGM2033 General Description

The SGM2033 is an ultra-low noise, low VIN, high PSRR, high accuracy and low dropout voltage linear regulator which is designed using CMOS technology. It provides 250mA output current capability. The operating input voltage range is from 1.8V to 5.5V and output voltage range is from 1.2V to 5.0V. Ot.

SGM2033 Datasheet (900.62 KB)

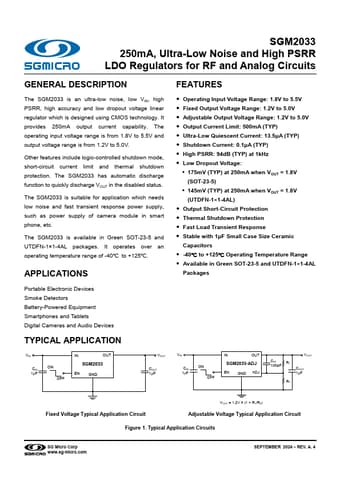

Preview of SGM2033 PDF

Datasheet Details

Part number:

SGM2033

Manufacturer:

SG Micro

File Size:

900.62 KB

Description:

Ultra-low noise and high psrr ldo regulators.
