SGM2034 Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulator

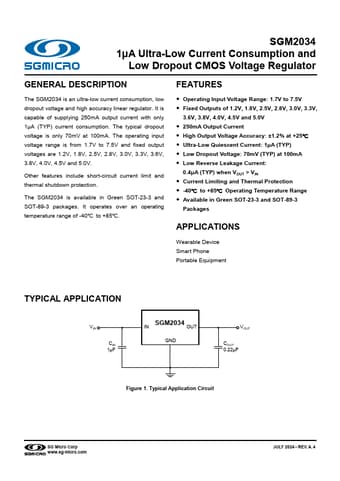

📥 Download Datasheet  Datasheet Preview Page 1

Description

SGM2034 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulator GENERAL .
The SGM2034 is an ultra-low current consumption, low dropout voltage and high accuracy linear regulator.

📥 Download Datasheet

Preview of SGM2034 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SGM2034
Manufacturer
SG Micro
File Size
787.27 KB
Datasheet
SGM2034-SGMicro.pdf
Description
Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulator

Features

* include short-circuit current limit and thermal shutdown protection. The SGM2034 is available in Green SOT-23-3 and SOT-89-3 packages. It operates over an operating temperature range of -40℃ to +85℃. FEATURES
* Operating Input Voltage Range: 1.7V to 7.5V
* Fixed Outputs of 1.2V, 1.8V, 2.5V,

Applications

* Wearable Device Smart Phone Portable Equipment TYPICAL APPLICATION VIN CIN 1μF IN SGM2034 OUT GND VOUT COUT 0.22μF Figure 1. Typical Application Circuit SG Micro Corp www. sg-micro. com JULY 2024
* REV. A. 4 SGM2034 1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulat
