SGM33685C

350MHz to 510MHz High Linearity Power Amplifier

SGM33685C Features

* high linearity, high efficiency and high ruggedness. The SGM33685C is available in a Green TQFN-3×3-16L package. APPLICATIONS Repeater ISM Band PA LTE Femtocell FEATURES

* Supply Voltage: 3.3V and 5V

* Signal Gain at 5V: 34dB at 350MHz to 400MHz 37dB at 450MHz to 460MHz 36dB at 470MHz to 51

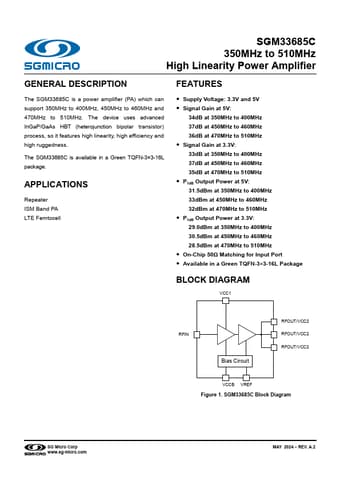

SGM33685C Datasheet (724.08 KB)

Preview of SGM33685C PDF

Datasheet Details

Part number:

SGM33685C

Manufacturer:

SG Micro

File Size:

724.08 KB

Description:

350mhz to 510mhz high linearity power amplifier.
