SGM3843 - PMIC

Name: SGM3843
SKU: SGM3843-1549014

SG Micro

📥 Download Datasheet

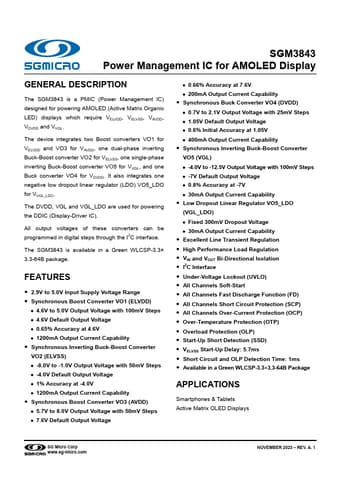

SGM3843 Datasheet Preview — Preview of SGM3843 PDF

Datasheet Details

Part number	SGM3843
Manufacturer	SG Micro
File Size	1.55 MB
Description	PMIC
Datasheet	SGM3843-SGMicro.pdf

SGM3843 Product details

Description

The SGM3843 is a PMIC (Power Management IC) designed for powering AMOLED (Active Matrix Organic LED) displays which require VELVDD, VELVSS, VAVDD, VDVDD and VVGL.

Features

2.9V to 5.0V Input Supply Voltage Range.
Synchronous Boost Converter VO1 (ELVDD).
4.6V to 5.0V Output Voltage with 100mV Steps.
4.6V Default Output Voltage.
0.65% Accuracy at 4.6V.
1200mA Output Current Capability.
Synchronous Inverting Buck-Boost Converter VO2 (ELVSS).
-8.0V to -1.0V Output Voltage with 50mV Steps.
-4.0V Default Output Voltage.
1% Accuracy at -4.0V.
1200mA Output Current Capability.
Synchronous Boost Converter VO3 (AV.
