SGM4568, 8-Bit Bidirectional Voltage-Level Translator

SGM4568 8-Bit Bidirectional Voltage-Level Translator with Auto Direction Sensing GENERAL .
The SGM4568 is an 8-bit, non-inverting, bidirectional voltage-level translator which features two independent configurable power-supply lines.

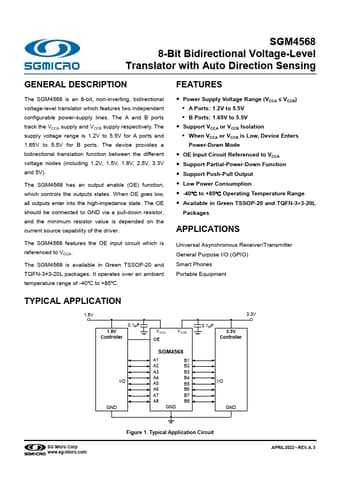

datasheet Preview Page 1 from Datasheet4u.com

SGM4568-SGMicro.pdf

SGM4568 Datasheet Preview — Preview of SGM4568 PDF

Datasheet Details

Part number:

SGM4568

Manufacturer:

SG Micro

File Size:

533.63 KB

Description:

8-Bit Bidirectional Voltage-Level Translator

Features

* two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.2V to 5.5V for A ports and 1.65V to 5.5V for B ports. The device provides a bidirectional translation function between the different voltage nodes (inc

Applications

* Universal Asynchronous Receiver/Transmitter General Purpose I/O (GPIO) Smart Phones Portable Equipment TYPICAL APPLICATION 1.8V 0.1μF 1.8V Controller I/O GND VCCA OE VCCB SGM4568 A1 B1 A2 B2 A3 B3 A4 B4 A5 B5 A6 B6 A7 B7 A8 B8 GND 3.3V 0.1μF 3.3V Controller I/O GND SG Micro
